Continuous Ink Supply System (CISS): Working Principle, Retrofit Kits, and Factory Supertank Printers
A Continuous Ink Supply System (CISS), also recognized across commercial print operations as a continuous flow system or bulk feed ink system, delivers large volumes of liquid ink from high capacity external tanks directly to an inkjet printhead. By replacing small, single use cartridges with constant pressure fluid channels, CISS reduces document and apparel printing costs by 85% to 95% while eliminating production stoppages during heavy print runs.
How Continuous Ink Delivery Operates: The Mariotte Bottle Principle
Inkjet printheads depend on delicate surface tension and negative gauge pressure at their microscopic nozzle orifices. If positive gravity pressure pushes ink forward, the nozzles flood, creating massive puddles on paper and internal roller assemblies. If negative vacuum resistance is too strong, the printhead starves of liquid, introducing severe horizontal banding and thermal burnout. Continuous ink systems solve this challenge using the Mariotte siphon principle.
Dual Chamber Isobaric Balance
A continuous ink reservoir features two distinct compartments: a large ink storage chamber and a narrow air balancing column. The air column remains open to atmospheric pressure through a breather vent, while the primary ink chamber is sealed airtight.
As ink feeds into the printer carriage, air bubbles travel down through the breather column to the bottom divider slot. This design ensures the effective hydrostatic head pressure is governed by the relative height of the air dip channel rather than the varying liquid height inside the primary reservoir.
Constant Meniscus Equilibrium
Inkjet nozzles eject microscopic picoliter droplets using piezo ceramic crystals or thermal heating elements. Each firing cycle relies on the concave fluid meniscus snapping back into equilibrium within microseconds.
Because the Mariotte system supplies an uninterrupted, isobaric feed, the meniscus retains consistent back pressure regardless of whether the external bottle is completely full or 80% empty. This eliminates the print density fluctuations typical of aging disposable sponge cartridges.
The Critical Elevation Rule
External continuous ink tanks must rest on the exact same flat, level desk surface as the printer base. Raising the tanks by even 5 centimeters creates positive gravity siphon pressure, causing ink to pour continuously through the nozzles into the printer chassis.
Conversely, placing tanks below the desk surface forces the printhead to fight excessive gravitational pull, leading to ink starvation, blank bands across color gradients, and permanent piezo crystal stress.
Important Rule for Retrofit Systems
Never place external continuous ink tanks on top of the printer scanner lid or on elevated risers. Doing so will immediately flood the print carriage, drown the optical encoder strip, saturate the bottom waste ink absorber pads, and short circuit printhead electronics. Keep the reservoir base strictly flush with the printer base at all times.

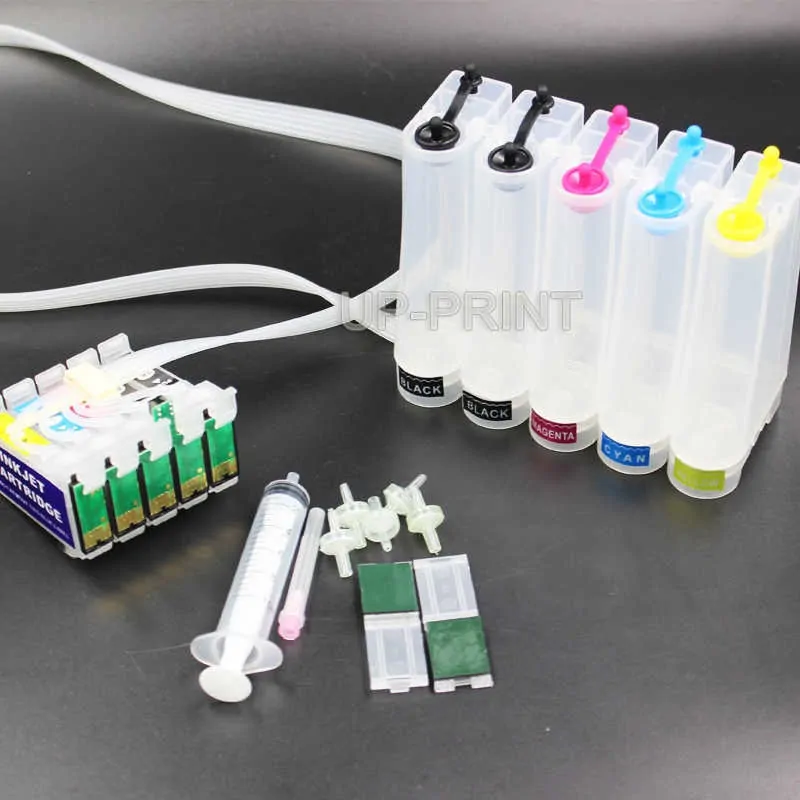

Anatomy of a Continuous Ink Supply System
Whether built as a third party aftermarket conversion kit or integrated directly into an original equipment manufacturer (OEM) chassis, every continuous ink architecture incorporates five essential fluid and mechanical modules.
1. External Tanks
Molded polypropylene or high grade acrylic reservoirs containing 70ml to 140ml per color channel. Equipped with dual silicon plugs: a wide refill port and a narrow atmospheric vent fitted with porous dust filters to block ambient debris.
2. Silicone Ribbon Tubing
Flexible 4, 6, or 8 channel multi bore silicone tubing lines engineered with chemical resistance to plasticizers. The tubing remains supple under rapid, millions of cycle carriage sweeps without crimping, fatiguing, or leaking vapor.
3. Dampers & Cartridge Adapters
Mounted directly inside the moving carriage over the printhead intake needles. Incorporates fine 10 to 15 micron stainless steel mesh screens that capture sediment while dampening fluid hydraulic hammer shocks during directional reversals.
4. Auto Reset Chips (ARC)
Digital logic boards paired with cartridge adapters. These microcontrollers emulate OEM smart chips, automatically resetting virtual ink levels back to 100% when the printer carriage is opened or during power on cycles, bypassing firmware lockouts.
| Component Module | Material & Specification | Critical Function | Common Failure Mode |
|---|---|---|---|
| Air Breather Filters | Sintered porous PTFE or polypropylene membrane | Allows atmospheric pressure equilibrium while stopping dust ingress | Ink clogging from tipped tanks, causing fluid starvation |
| Fluid Ribbon Tubing | High elasticity medical grade silicone, 1.4mm internal diameter | Transports liquid ink smoothly without mechanical friction | Tubing droop catching on printhead carriage, causing mechanical jams |
| Intake Damper Assemblies | Spring loaded polymer diaphragm with stainless mesh screen | Filters micro particulates and absorbs hydraulic shock pulses | Air accumulation inside chamber, causing color dropout |
| T Support Suspension Arm | Rigid PVC or stamped steel clip with adhesive backing | Maintains correct loop radius for carriage motion across platen | Adhesive release, allowing tubing to drag along paper feed path |
| Waste Ink Drainage Bottle | External polyethylene collection reservoir with silicone purge hose | Diverts head cleaning purge volume away from internal felt pads | Failure to empty bottle, causing liquid backflow or workbench spills |
Retrofit Accessory Kits vs Factory Supertank Printers
For years, printer manufacturers relied on the razor and blades business model: selling inkjet hardware at a loss while charging premium prices for small replacement ink cartridges. The rise of aftermarket continuous ink retrofit kits disrupted this paradigm, ultimately forcing manufacturers to launch genuine factory integrated continuous ink printers.

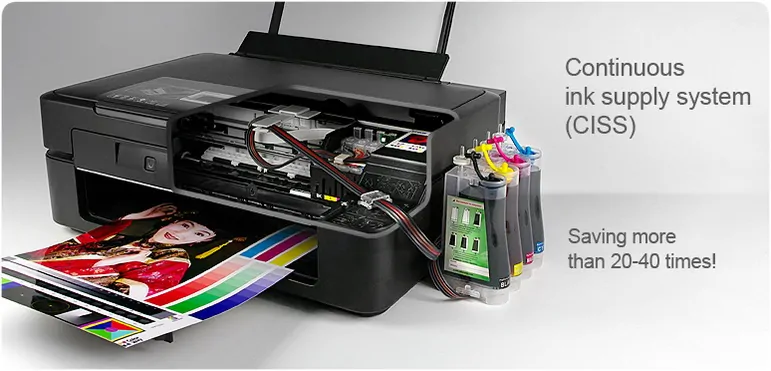

Retrofit CISS Accessory Kits
Third party kits designed to convert consumer cartridge printers (such as legacy Epson Stylus Photo 1390/1430, Canon IP2770/MP287, or HP Deskjet models) into bulk ink workhorses.
- Hardware Cost: Lowest initial capital barrier. Empty tower tanks and tube assemblies cost between ₱380.00 and ₱650.00 (about $6.08 to $10.40 / €5.32 to €9.10 / £4.56 to £7.80).
- Custom Ink Freedom: Enables print shops to load specialty inks such as dye sublimation ink for heat press garments, solvent inks, or textile direct to film inks.
- Mechanical Vulnerability: Requires cutting chassis plastic or removing top shrouds to route tubing. Improper tube slack often triggers carriage collision errors.
- Warranty Impact: Installing third party retrofit systems immediately voids the manufacturer factory warranty.
Factory Supertank Printers
Modern original manufacturer systems with fully integrated, front facing continuous ink reservoirs and internal factory routed fluid lines.
- Epson EcoTank (L Series): Pioneer of genuine factory tanks in 2010. Utilizes Micro Piezo and PrecisionCore Heat Free printheads, key coded spill free bottle nozzles, and high black page yields up to 7,500 pages.
- Brother Refill Tank System: Models like DCP T220, DCP T420W, DCP T520W, DCP T720DW, MFC T920DW, and A3 MFC T4500DW. Feature 45 degree tilt refill ports and transparent front monitoring windows.
- Canon MegaTank (G Series): Hybrid ink architecture using pigment black for sharp document text and dye color inks for vivid photo reproduction. Features user replaceable printhead cartridges.
- HP Smart Tank: Integrated spill free ink bottles, automatic low ink sensors, and mobile application management for small office workloads.
| Comparison Metric | Traditional Cartridge Printer | Retrofit Aftermarket CISS Kit | Factory OEM Supertank Printer |
|---|---|---|---|
| Initial Hardware Cost | Lowest upfront (₱3,500.00 to ₱5,500.00) | Low (base printer + ₱450.00 kit) | Moderate to higher (₱8,500.00 to ₱24,000.00) |
| Ink Capacity per Channel | Very small (8ml to 14ml per cartridge) | High (80ml to 140ml per tower tank) | High (65ml to 135ml integrated tanks) |
| Running Cost per Page | High: ₱2.50 to ₱4.50 per black text page | Lowest: ₱0.10 to ₱0.20 per page | Very low: ₱0.12 to ₱0.25 per page |
| Specialty Ink Capability | Strictly OEM or compatible cartridges | Unmatched (Sublimation, DTF, Pigment) | OEM formulated standard dye or pigment |
| Spill & Leakage Hazard | Negligible (factory sealed plastic units) | Higher (tubing dislodgement, elevation error) | Very low (factory sealed internal routing) |
| Carriage Jam Risk | None (no external tubing) | Moderate (requires precise tube tension) | Zero (internal factory harness) |
| Official Warranty | Full manufacturer 1 year standard warranty | Voided upon installation or third party ink | Full 1 to 2 year manufacturer warranty |
Ink Chemistries Compatible with Continuous Flow Systems
The longevity of your printhead and the durability of your finished prints depend heavily on matching the correct fluid ink chemistry to your printer technology. Continuous ink tanks can handle diverse ink types, provided viscosity and surface tension meet printhead specifications.
Dye Based Inks
Complete liquid solutions where colorant compounds dissolve entirely in water and glycols. Produces vibrant color gamuts, rich photo saturation, and minimal nozzle clogging risk. Highly sensitive to water immersion and UV light fading over extended display.
Pigment Based Inks
Microscopic microscopic solid color particles suspended in liquid carriers. Encapsulated in resin, pigment particles bind to paper surface fibers, providing waterproof permanence, highlighter smudge resistance, and archival UV durability for legal documents.
Sublimation Inks
Disperse dyes engineered to transition from solid to gas under 190°C to 205°C heat press conditions. Molecules fuse directly into synthetic polymer chains, creating permanent, zero feel graphics on white polyester jerseys, mousepads, ceramic mugs, and custom sports uniforms.
Textile & DTF Formulations

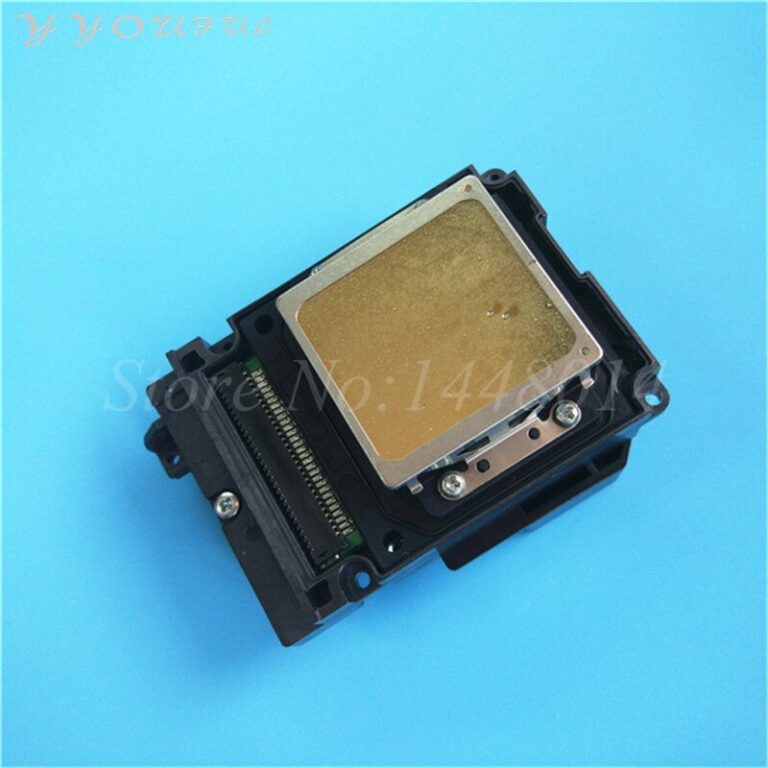

High solids elastic pigment formulations used in Direct to Film (DTF) apparel printing. Requires specialized piezo printheads (such as Epson i3200 or XP600) and active white ink circulation systems to prevent titanium dioxide pigment settling in tubing lines.
Pros and Cons of Continuous Ink Supply Systems
Choosing continuous ink technology requires evaluating real world production benefits against mechanical maintenance obligations. Here is a balanced assessment for commercial print operators, corporate procurement managers, and small business owners.
- Drastic Cost Reduction: Bulk ink bottles yield savings between 85% and 95% compared to purchasing OEM cartridges, dropping the cost per full color graphic from pesos down to centavos.
- Uninterrupted Production: High capacity external tanks can be refilled while the printer is actively printing large batches of flyers, multi page exam papers, or large sublimation transfer sheets.
- Environmental Waste Reduction: Eliminates hundreds of discarded single use plastic cartridges, electronic microchips, and blister pack waste from Philippine landfills each year.
- Consistent Printhead Priming: Continuous isobaric fluid contact prevents air ingress into printhead nozzles during cartridge replacement procedures, preserving consistent density.
- Installation Sensitivity (Retrofit): Converting cartridge printers requires careful tube routing, air bleeding with syringes, and fine damper adjustments. Poor setup causes leaks and carriage errors.
- Elevation Sensitivity: Raising tanks above desk height causes gravity flooding, while lowering tanks causes ink starvation. Strict horizontal alignment is mandatory.
- Idle Nozzle Clogging: In tropical climates with elevated ambient temperatures, printers left unused for weeks suffer pigment drying in nozzles, requiring frequent head cleaning cycles.
- Waste Ink Absorber Saturation: High print volumes fill internal waste ink sponge pads rapidly, triggering service error locks unless redirected to external waste bottles.
Cost Analysis & Commercial Return on Investment
For Philippine print businesses, schools, internet cafes, and corporate offices, ink expense represents the single largest variable operating cost. Compare standard consumable costs across international currencies:
Disposable OEM Cartridges
₱2,800.00 to ₱3,600.00
About $44.80 to $57.60 / €39.20 to €50.40 / £33.60 to £43.20 per full 4 color set
Yields approximately 300 to 450 document pages before replacement. Direct ink expenditure averages ₱7.00 to ₱10.00 ($0.11 to $0.16) per printed color page.
Bulk CISS Refill Bottles
₱180.00 to ₱320.00
About $2.88 to $5.12 / €2.52 to €4.48 / £2.16 to £3.84 per 70ml to 100ml bottle
Yields 6,000 black and white text pages or up to 7,500 vivid color pages per set. Direct ink expenditure drops to ₱0.10 to ₱0.25 ($0.0016 to $0.004) per page.
Retrofit CISS Tower Assembly
₱380.00 to ₱650.00
About $6.08 to $10.40 / €5.32 to €9.10 / £4.56 to £7.80 per 4 color conversion kit
Includes acrylic external reservoir, silicon ribbon tubes, pipe clips, primed damper cartridges, and dust breather plugs. Pays for itself within the first 150 pages.
Step by Step CISS Installation and Priming Procedure
Proper mechanical assembly and atmospheric balancing ensure trouble free operation. Follow this proven protocol when installing aftermarket retrofit continuous systems or refilling factory ink tank printers.
Workspace Leveling
Position the printer on a sturdy, vibration free flat table. Clear all shipping tape, packing foam, and head transit locks from the internal carriage path.
Tank Filling & Balancing
Seal the small air vent with rubber stoppers. Pour ink into the large reservoir port until 80% full. Seal the main port, then open the small vent to equalize atmospheric pressure in the Mariotte tube.
Syringe Damper Priming
Insert a blunt syringe into the outlet silicone seal of each cartridge damper. Gently pull plunger back to draw ink through the ribbon tube until all air bubbles vacate the line and dampers fill completely.
Tension Arm Suspension
Affix the T bracket clamp to the printer top frame. Route the silicone ribbon so the carriage moves freely from extreme left to extreme right without drooping onto the paper or stretching tight.
Carriage Seat & Choke Lock
Press primed dampers firmly onto printhead intake needles until positive click engagement occurs. Release any tube pinch clips to open gravity balanced fluid delivery.
Head Cleaning & Verification
Power the printer on and run 1 standard head cleaning cycle via driver utility. Print a nozzle check pattern to verify unbroken 100% test lines across all color channels.
Continuous Ink System Troubleshooting Matrix
Quick diagnosis and repair guidelines for the five most common continuous ink issues encountered during production.
| Symptom | Root Cause | Immediate Remediation | Preventative Protocol |
|---|---|---|---|
| Air Gaps inside Ribbon Tubes | Loose elbow connector, punctured line, or unsealed damper intake needle | Use syringe to reprime damper from bottom outlet, reseat elbow silicone O ring with petroleum jelly | Ensure tube clamps are open, inspect joints for micro hairline cracks |
| Ink Puddling on Paper / Chassis | External tank elevated above printer platen, breaking Mariotte back pressure siphon | Immediately lower tanks to desk level, blot carriage assembly with lint free cloth, clean platen rollers | Never place ink tanks on scanner lid or book risers, keep strictly on the same surface level |
| Horizontal Banding in Solid Prints | Partially clogged nozzle orifices or air breather vent stopper left closed | Verify small air hole stopper is removed and dust filter inserted; execute 2 automated head cleans | Avoid exceeding 3 consecutive deep clean cycles to prevent printhead overheating |
| Carriage Jam / Grinding Noise | Silicone ribbon tubing too loose, catching between printhead carriage and side chassis | Adjust ribbon bracket clamp position to provide smooth arc loop during full carriage travel | Manually slide carriage across entire carriage rod with power unplugged to verify clearance |
| Cartridge Not Recognized Error | Dirty contact pins on Auto Reset Chip (ARC) board or microchip firmware mismatch | Power down printer; clean gold microchip contact pads with 99% isopropyl alcohol; reseat firmly | Disable automatic printer driver firmware updates in operating system settings |
Commercial Sourcing & Print Production in the Philippines
In the Philippine commercial printing landscape, continuous ink supply technology powers a vibrant ecosystem of custom apparel decorators, signage makers, and high volume document centers. Suppliers like Crystal Image Paper Marketing Corp provide empty tower systems, silicone tubes, and bulk sublimation inks to print shops throughout Davao Region and nationwide.
Sublimation Sports Apparel & Jersey Printing
By outfitting piezo printhead printers (such as the legacy Epson L1300 A3 or L1800 6 color machines) with bulk disperse sublimation inks, Philippine sports apparel makers print full rolls of transfer paper for ₱1.80 to ₱3.50 per square meter. Heat pressed onto polyester fabrics at 200°C, these prints yield brilliant, non fading colors that withstand dozens of competitive sports washes.
High Volume Institutional Document Production
Schools, universities, government municipal offices, and commercial internet cafes across Mindanao rely on factory continuous ink printers (such as Brother DCP T520W and Epson EcoTank L3210) to produce thousands of educational modules, legal contracts, and administrative records monthly at negligible running costs.
Frequently Asked Questions About Continuous Ink Systems
Expert answers to common questions regarding continuous ink operation, fluid longevity, and printer care.
What is a Continuous Ink Supply System (CISS) and how does it differ from cartridges?
A Continuous Ink Supply System delivers bulk liquid ink from large external reservoirs (70ml to 140ml per color) directly to the printer carriage through flexible silicone tubing. Unlike traditional cartridges that hold only 8ml to 14ml and require complete disposal when empty, a continuous system is refilled from inexpensive bulk ink bottles while the printer remains operational, cutting ink expenses by up to 95%.
How does the Mariotte bottle principle prevent ink from leaking or starving?
A Mariotte reservoir uses two chambers: an airtight ink storage vessel and an atmospheric balancing air tube. By venting the air tube to ambient pressure while sealing the reservoir, the hydrostatic pressure feeding the printhead is fixed at the bottom of the air column rather than the changing liquid surface. This establishes a constant negative gauge pressure at the nozzles, preventing gravity pooling and fluid starvation.
Can I install a CISS on any inkjet printer?
Not all printers accept retrofit continuous ink kits. Printers with disposable printhead cartridges (where the nozzles are built into the ink cartridge itself, such as budget two cartridge HP or Canon models) can suffer rapid electrical wear if retrofitted. Printers with permanent piezo printheads (such as Epson) handle continuous feed setups exceptionally well. Modern users typically choose factory supertank printers (Epson EcoTank, Brother Refill Tank, Canon MegaTank) for factory reliability.
Does installing a retrofit CISS kit void my printer warranty?
Yes. Installing third party continuous ink kits or using non OEM inks on standard cartridge printers voids manufacturer warranties. If warranty protection is a commercial requirement, select factory integrated supertank printers like the Epson EcoTank, Canon MegaTank, HP Smart Tank, or Brother Refill Tank series, which come with full 1 to 2 year manufacturer warranty coverage.
Why do ink lines develop air bubbles and how do I remove them?
Air bubbles occur when an elbow connector fitting is loose, a silicone line experiences a micro puncture, or when ink tanks run completely empty. Air pockets can be purged by inserting a blunt syringe into the bottom silicone seal of the carriage damper and gently drawing ink forward until all air vacates the tube and fills the damper reservoir.
How often should a CISS printer be used to prevent dried nozzle clogs?
In tropical climates like the Philippines where ambient temperatures frequently exceed 30°C, run at least one full color nozzle test pattern or test page every 3 to 5 days. Regular droplet ejection prevents pigment and dye polymers from evaporating and crystallizing inside microscopic 20 to 30 micron nozzle bores.
What is an external waste ink tank and why is it needed?
Every head cleaning cycle purges liquid ink through the nozzles to clear clogs. In factory configurations, this purge volume drains into porous felt absorber pads resting under the printer mechanism. After heavy commercial usage, these pads become saturated. High volume print shops route the internal purge tube into an external waste bottle to prevent workbench floods and simplify maintenance counter resets.
Can I convert a dye ink CISS printer to sublimation ink?
Yes, provided the printer utilizes a piezo electric printhead (such as Epson L Series models). Thermal inkjet printers (like standard HP models) cannot run sublimation ink because thermal heat boils and degrades the disperse dyes inside the firing chambers. Before pouring sublimation ink into a printer previously filled with dye ink, flush the lines, dampers, and printhead completely with specialized cleaning solution to prevent chemical coagulation.
